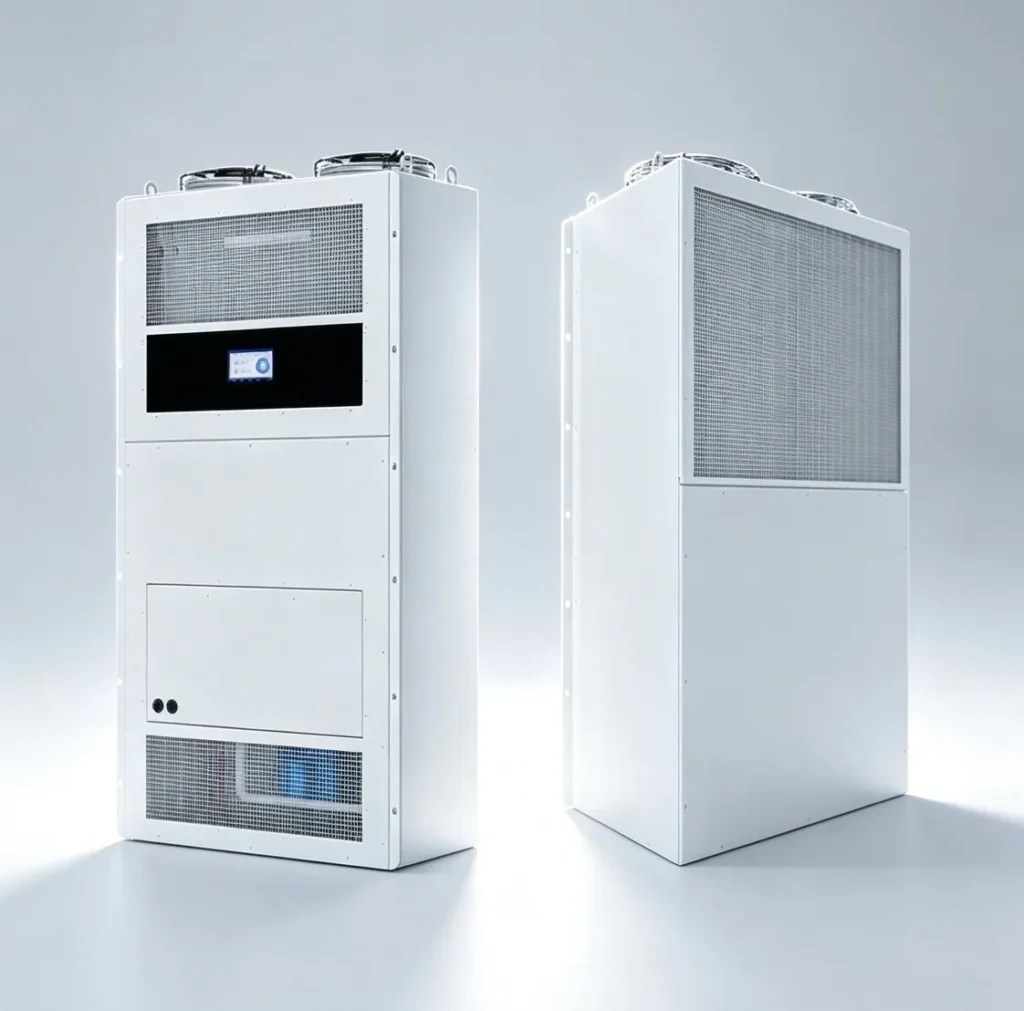

SmoothAir – Wall Mount Precision Cooling

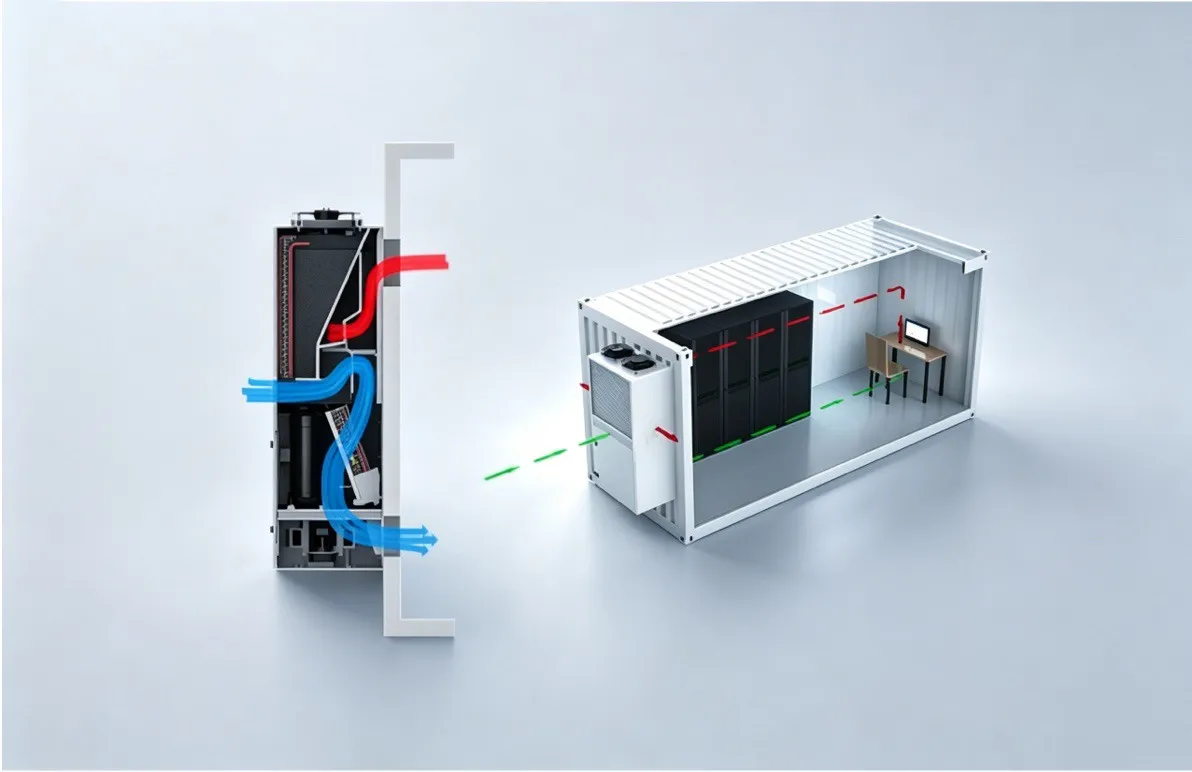

• PUE low to 1.1.
• Compatible with wall cool and top cool system.
• Automatic mode switching, and simplified installation.

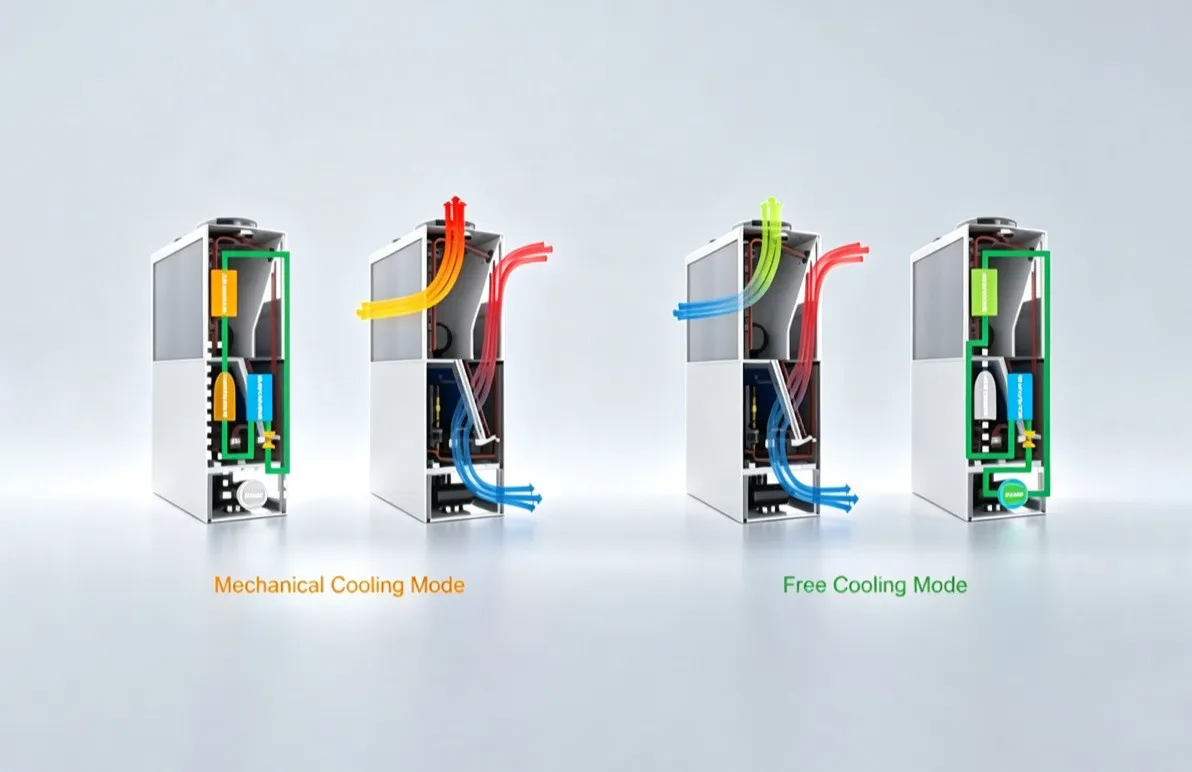

• PUE low to 1.2.
• No water consumption during free cooling mode.
• No water loop introduced into server room, no flooding concern.
• Indirect type No dust, moisture concern.
• Automatic mode switching, and no complex maintenance and service.

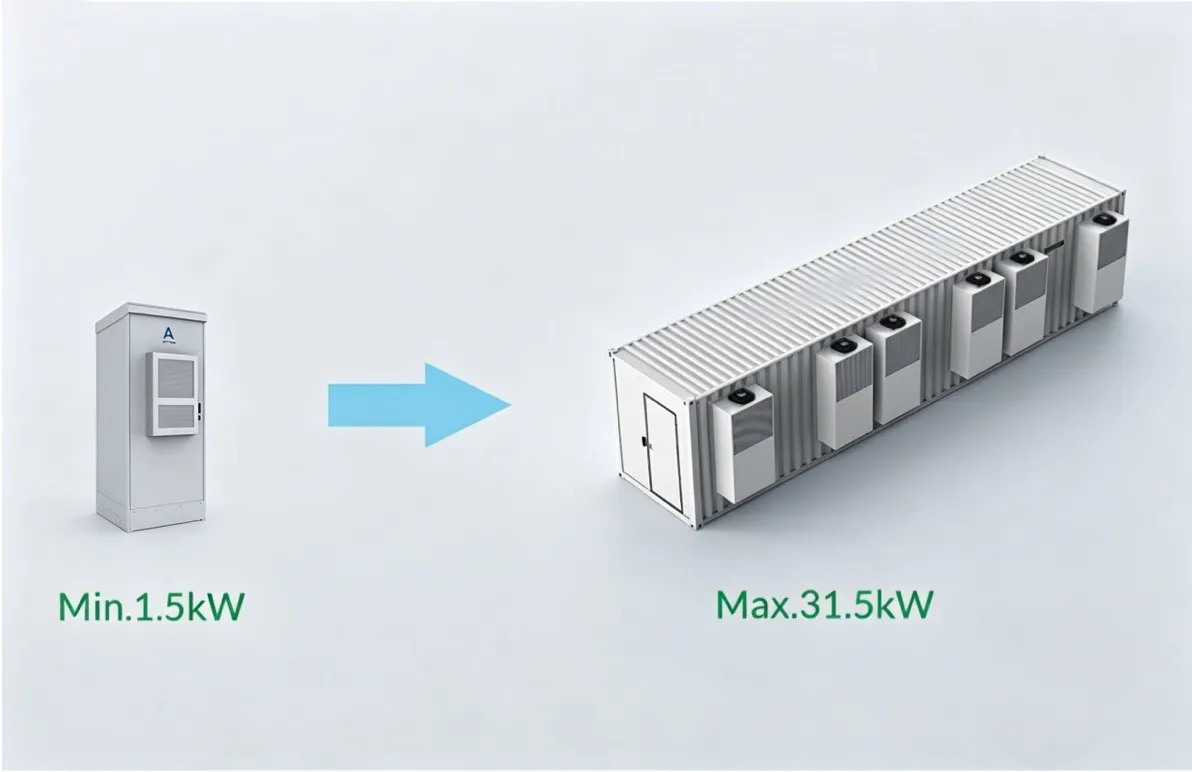

Self-contained design ensure easy transportation and deployment.

Whether your business is an edge telecom shelter,or a modular container data center. we can provide more flexible solutions for your projects with our wide range of cooling capacity.

• Top components from leading brands and unique design assure high reliability of products.

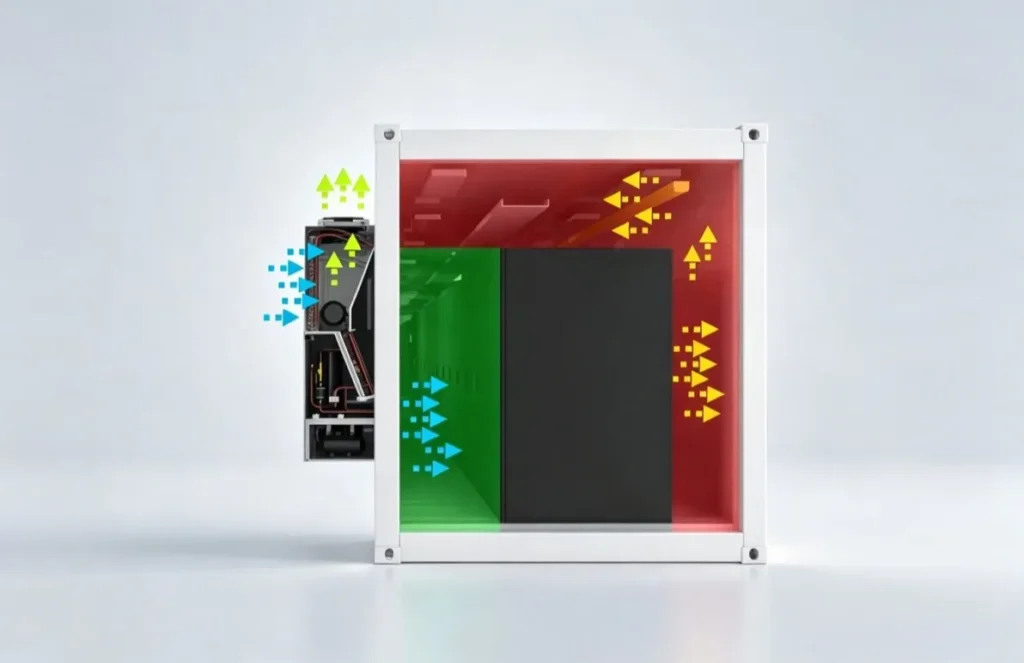

• Inverter compressor and EC fan with intelligent control system ensure precise temperature control.
• Available in wall mount or top mount of modular data center, it is fully compatible with hot and cold aisle systems to provide an efficient cooling environment.
• Optional direct and indirect free cooling configuration for minimizing the energy consumption of the cooling system.
• Optional 48VDC power standby module for fan & controller & free cool system, support continuous air circulation during main power loss.

• Industry leading smart control system, with insightful sensor data and intelligent control logics.
• All digital control to major components, maintaining optimum working status, and flexible adjustment per onsite working conditions.
• 1000+ alarm records, and 7days history pressure curve records, 7days history temperature curve records.
• Smart monitoring protocols: Web/SNMP/Modbus/Bac-net/Email/Dry contact/IPV6.
• Teamwork function including Master/Slave Working mode, Master Control mode and Force Working mode.
• Built in web server support visit with web-browser from computers and mobile devices, can view ,control unit through web.
